Eaton 9PX1000IRT overview
Eaton 9PX1000IRT Online UPS (1000VA/1000W) is listed by Iwell for online UPS enquiries. The published specifications include Power rating: 1000 VA / 1000 W; Mounting: Rack/tower, 2U; Input connection: C14. Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Product highlights
- 1000 VA / 1000 W power rating for matching the UPS to your equipment load.
- Rack/tower, 2U configuration for the available installation space.

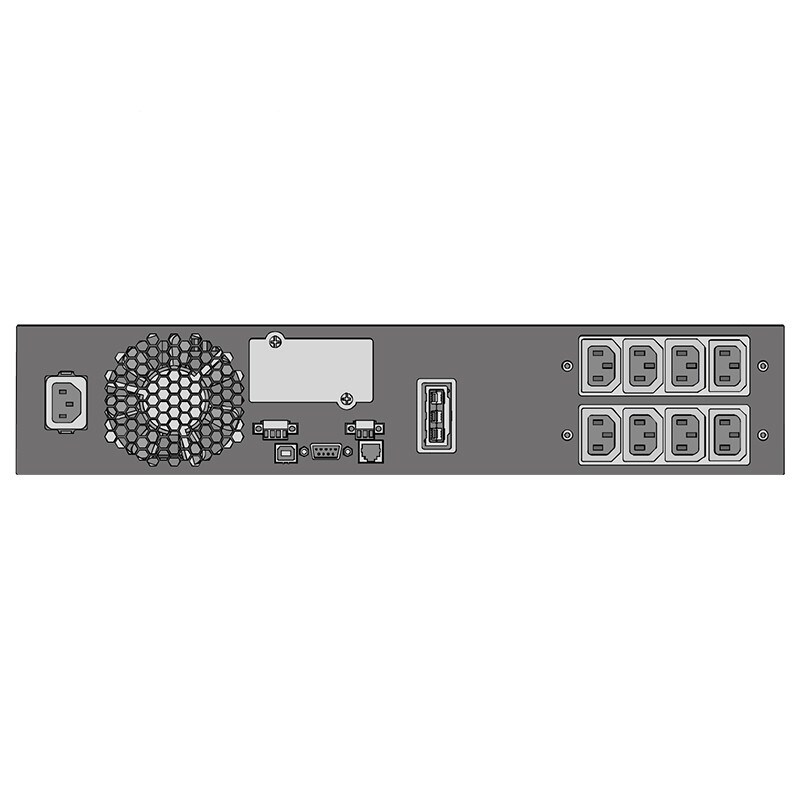

- C14 input and (8) C13 outputs for checking connection compatibility.
Eaton 9PX1000IRT selection and documents
Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Use the specification table below and the Documents tab to review 9PX1000IRT. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare online UPS products or browse Eaton product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
| Power rating | 1000 VA / 1000 W |
|---|---|
| Topology | Online double-conversion |

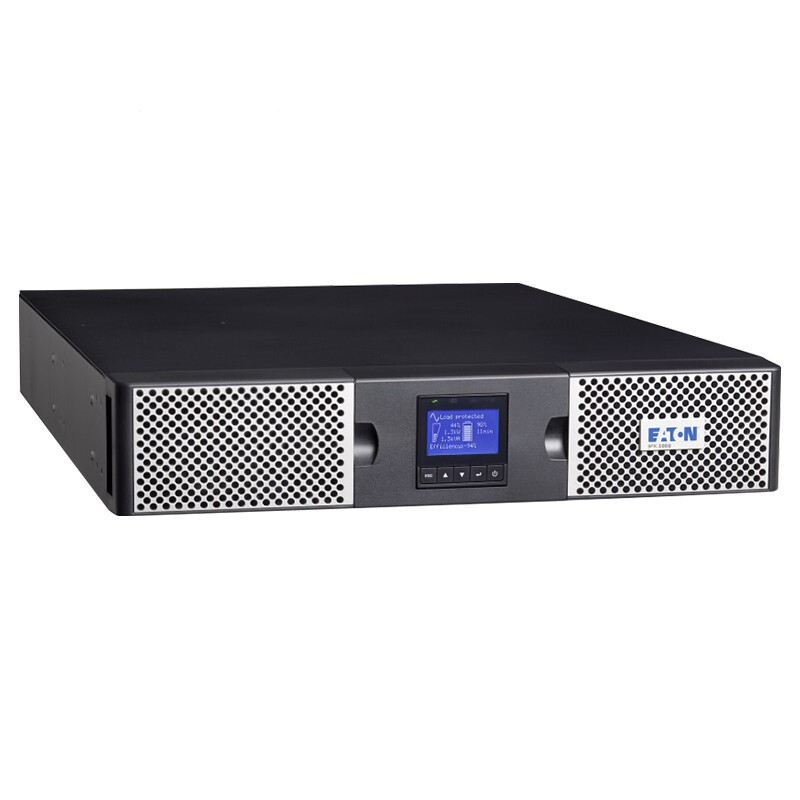

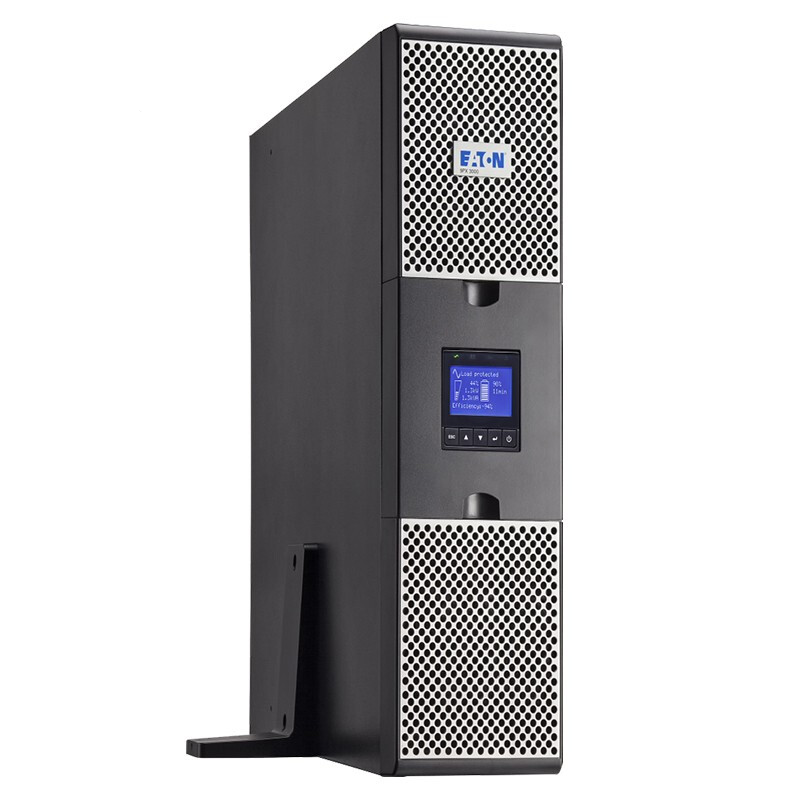

| Mounting | Rack/tower, 2U |
| Input connection | C14 |
| Output connections | (8) C13 |
| Width | 44 cm |
| Height | 8.65 cm |
| Depth | 45 cm |
| Weight | 19.5 kg |
Model reference: 9PX1000IRT / 9PX1000IRT2U.
Product selection
Check the equipment load, connection types, available space and required backup time before selecting the configuration. Share your model, quantity and runtime requirements for a quotation.
