Eaton EATS16N overview
Eaton EATS16N Automatic Transfer Switch (16A, 1U) is listed by Iwell for automatic transfer switch enquiries. The published specifications include Mounting: 1U rack; Input connection: (2) C20; Output connections: (8) C13, (1) C19. Check both input sources, the rated current, input connectors and output receptacles against the connected equipment. The switch does not provide battery runtime.
Product highlights
- Compact 1U format for rack power distribution.

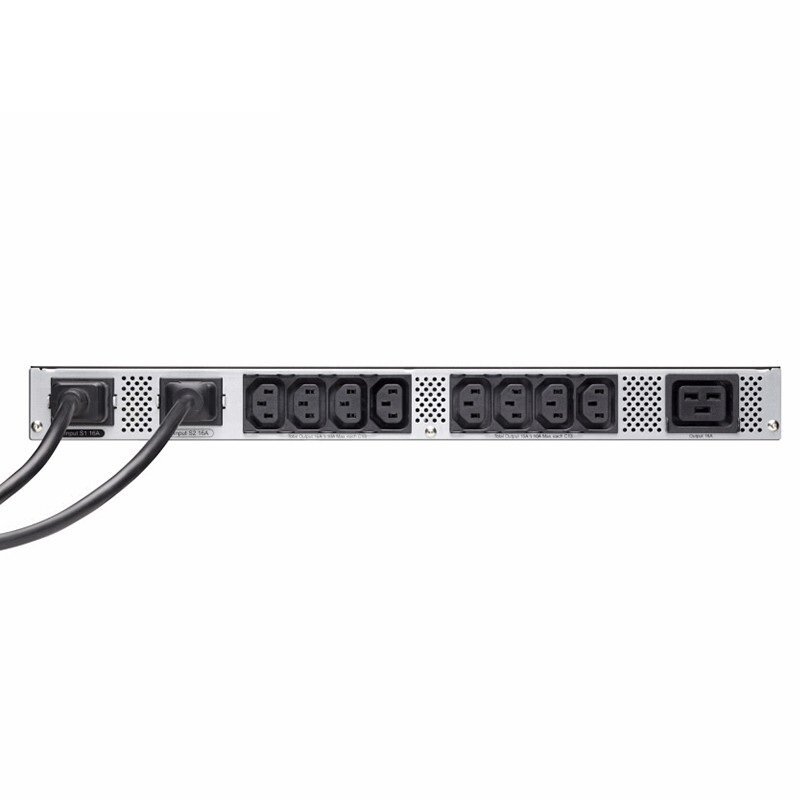

- Input: (2) C20; output: (8) C13, (1) C19.
- Network management for remote monitoring.
Eaton EATS16N selection and documents
Check both input sources, the rated current, input connectors and output receptacles against the connected equipment. The switch does not provide battery runtime.
Use the specification table below and the Documents tab to review EATS16N. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare automatic transfer switch products or browse Eaton product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
| Rated current | 16A |
|---|---|
| Input voltage | 200-240V |
| Mounting | 1U rack |
| Input connection | (2) C20 |
| Output connections | (8) C13, (1) C19 |
| Phase | Single-phase |
| Frequency | 50/60 Hz |
| Network management | Yes |
| Width | 250 mm |
| Height | 43 mm |
| Depth | 430 mm |
| Weight | 3.54 kg |
Product selection
Match the load current, supply voltage and connection types to your equipment. Send the required model and quantity to request a product quotation.
