Santak ARRAY 3A3 PT series UPS (20~200kVA) is listed by Iwell for modular UPS enquiries. Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.

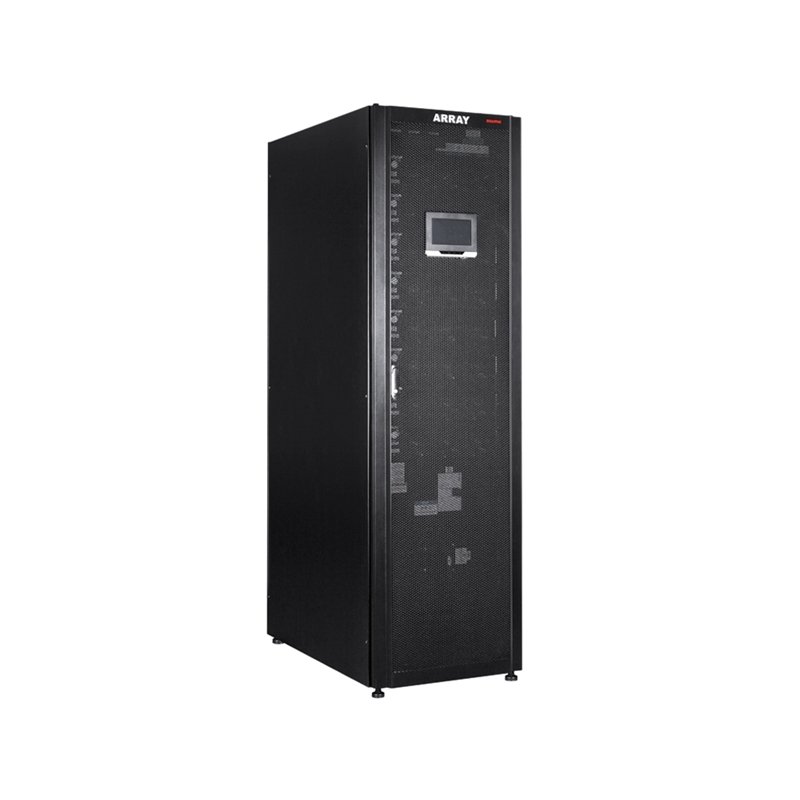

The ARRAY 3A3 PT is Santak's latest three/three modularized, digitally controlled UPS. It is the realization of the latest electronics and automation control technology, a benchmark in the UPS market. The ARRAY 3A3 PT brings about a new concept in power supply solution, allowing a breakthrough in the practicability of power usage equipment. ARRAY 3A3 PT applies a tray type, smart modular design that allows for hot plug/play designs, this allows flexible adjustment of the modules to satisfy power and reliability requirements. Zero offline maintenance is also realized by its capability to conduct online maintenance when modules are idle.
Features

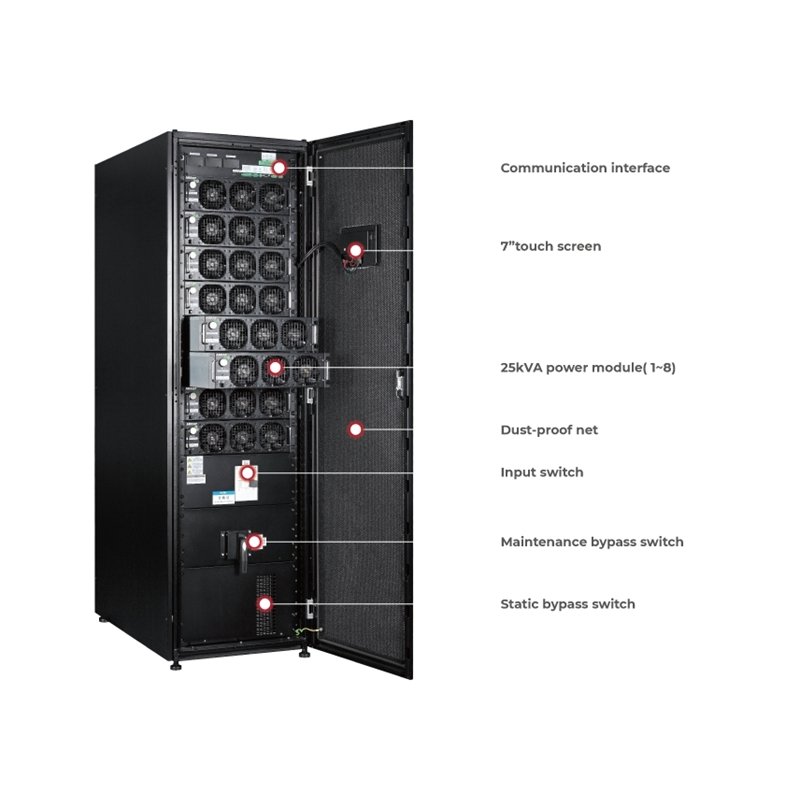

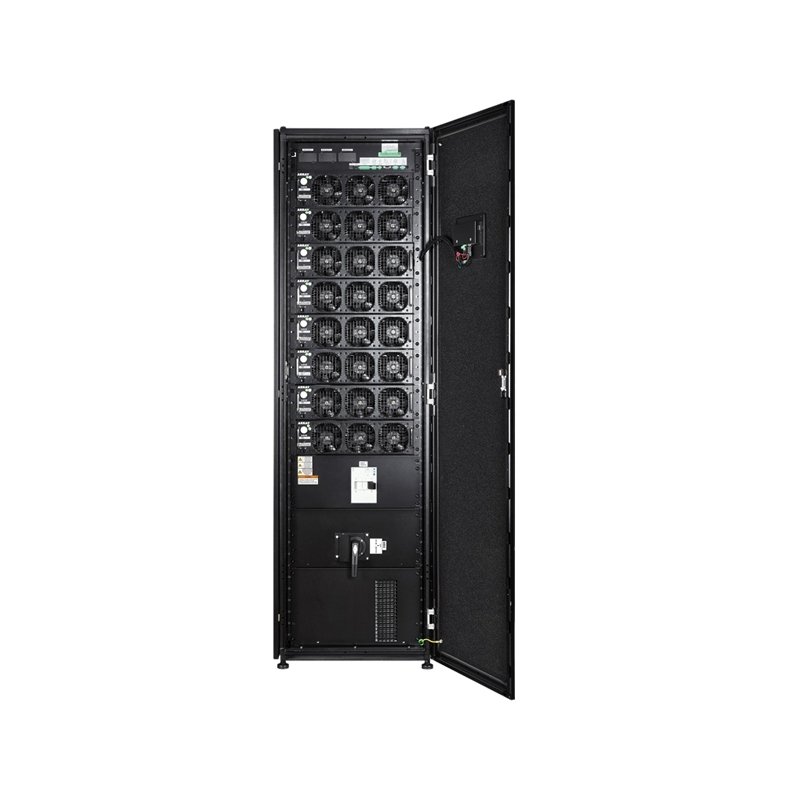

- Hot swappable power modular design (25kVA each module)
- Advanced three step control technology. efficiency up to 96% for online mode, 99% for ECO mode
- Flexible battery configuration, 36-42 pcs configurable
- Battery voltage configurable from 432~504V by 2V step.
- Parallel function for N+X redundancy ( Up to 4 UPS) with Wireless parallel technology
- Adjustable charger current, 25A max for each module
- Dual input redundancy design
- 7 inches touch screen, easy to operate
- PCBA coating for dusty and salty application
- Internal Maintenance Bypass Switch standard offer
- CE compliance
Santak ARRAY 3A3 PT selection and documents
Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Use the specification table below and the Documents tab to review ARRAY 3A3 PT. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare modular UPS products or browse Santak product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
General
| Parameter | Specification |
|---|---|
| UPS output power rating | 25–200 kVA, PF=1 |
| Efficiency in double conversion mode | >96% |
| Efficiency in Energy Saver System | >99% |
| Topology | Double conversion on-line technology, three-level bridge IGBT PWM control |
| External paralleling | Up to 4 units with Hot paralleling technology |
| Noise @1 m, 25°C | <65 dBA in double conversion |
| UPS topology | Double conversion |
| Dimensions (W×D×H), mm | 600×1100×2020 mm (75 kVA frame); 608×1010×2050 mm (200 kVA frame) |
| Degree of protection | IP20 |
| Altitude (max.) | 1000 m above sea level at 40°C |
Input and battery
| Parameter | Specification |
|---|---|
| Input wiring | 3ph + N + PE |
| Rated input voltage | 220/380, 230/400, 240/415 V |
| Rated input frequency | 50 or 60 Hz, user configurable |
| Frequency tolerance | 40 to 72 Hz |
| Input power factor at 100% load | 0.99 |
| Input THD | <3% |
| Soft start capability | Yes |
| Battery type | VRLA, AGM, GEL, lithium battery |
| Charging method | Intelligent Battery Management or Continuous Float |
| Temperature compensation | Optional |
| Battery quantity | 36 to 42 blocks. Default is 40 blocks |
| Battery start capability | Yes |
Output, communications and standards
| Parameter | Specification |
|---|---|
| Output wiring | 3ph + N + PE |
| Rated output voltage rating | 220/380, 230/400, 240/415 50/60 Hz |
| Output voltage regulation | ±1% steady state |
| Output THD | <1.5% (100% linear load); <3% (100% non-linear load) |
| Permitted load power factor | 0.8 lagging to 0.8 leading |
| Overload on inverter | 10 min 125%; 60 sec 150%; 300 ms >150% |
| Overload on battery | 10 min 125%; 60 sec 150%; 300 ms >150% |
| Overload on bypass | Continuous <115%, 10 ms 1000% |
| Communications — Minislot | 3 communication bays |
| Communications — Serial ports | Built-in host and device USB |
| Communications — Standard connectivity ports | 5 building alarm inputs and a dedicated EPO |
| Communications — Software | Santak WinPower |
| Safety | IEC 62040-1 |
| EMC | IEC 62040-2 |
| Performance | IEC 62040-3 |
| RoHS | EU Directive 2011/65/EU |
