Santak ARRAY 3A3 PT series UPS (60~600kVA) is listed by Iwell for modular UPS enquiries. Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.

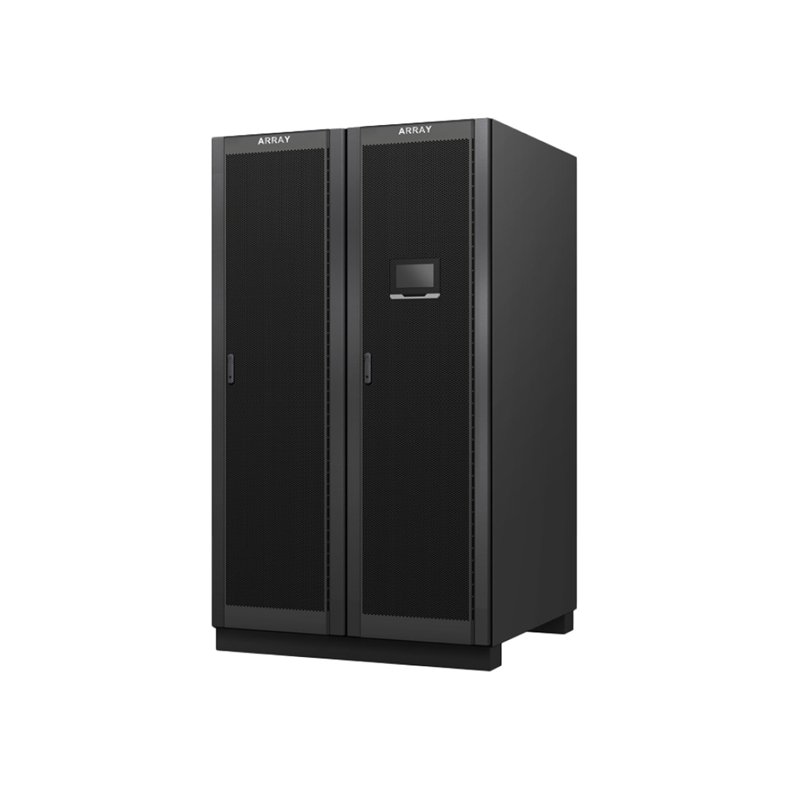

The ARRAY 3A3 PT is Santak's latest three/three modularized, digitally controlled UPS. It is the realization of the latest electronics and automation control technology, a benchmark in the UPS market. The ARRAY 3A3 PT brings about a new concept in power supply solution, allowing a breakthrough in the practicability of power usage equipment. ARRAY 3A3 PT applies a tray type, smart modular design that allows for hot plug/play designs, this allows flexible adjustment of the modules to satisfy power and reliability requirements. Zero offline maintenance is also realized by its capability to conduct online maintenance when modules are idle.
Features
- 99% efficiency with ESS
- Up to 97% efficiency in double-conversion mode
- Up to 50% footprint saving
- Flexible ventilation options
- On-line replaceable UPM & STSW & Communication module, MTTR as low as 5 mins
- Robust components using oil-filled capacitors & IGBT modules.
- Perfect integration with Lithium battery, compatible with multiple Lithiumion BMS
- High efficiency UPM module, efficiency up to 97%
- Complete power isolation options (Input/ Output/ Bypass/ MBS)
Santak ARRAY 3A3 PT selection and documents
Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Use the specification table below and the Documents tab to review ARRAY 3A3 PT. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare modular UPS products or browse Santak product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
Power modules, input and battery
| Parameter | Specification |
|---|---|
| Power module — Power offering (kW) | 60 kW (62.5 kW optional) |
| Frame options — 600 kW | Standard offer input/output/MBS/bypass switches |
| Efficiency in Energy Saver System (ESS) | Up to 99% |
| Efficiency in double-conversion mode | Up to 97% |
| Parallel capability | Standard 4 units external parallel (Max. 8 units with factory customization) |
| Cold start | Supported |
| Softstart | Rectifier ramp up, compatible with generator, ramp up rate configurable |
| Input — Voltage | 380/400/415 V |
| Input — Voltage range | 301–478 V L-L; 175–276 V L-N |
| Input — Frequency range | 50/60 Hz |
| Input — Power factor | >0.99 |
| Input — Current distortion | <3% @100% load capacity |
| Battery — Type | Lithium, VRLA |
| Battery — Charging method | ABM |
| Battery — Voltage | 432–528 Vdc (selectable) |
| Battery — Connection | Two wire (no neutral) |
Output and standards
| Parameter | Specification |
|---|---|
| Output — Voltage | 380/400/415 V, 4 wire |
| Output — Frequency range | 50/60 Hz |
| Output — Regulation | ±1% steady state |
| Output — Voltage THD | <1% (100% linear load); <5% (non-linear load) |
| Output — Overload | 125% 10 mins |
| Safety | IEC 62040-1 |
| EMC | IEC 62040-2 |
| Performance | IEC 62040-3 |
| RoHS | EU directive 2011/65/EU |
