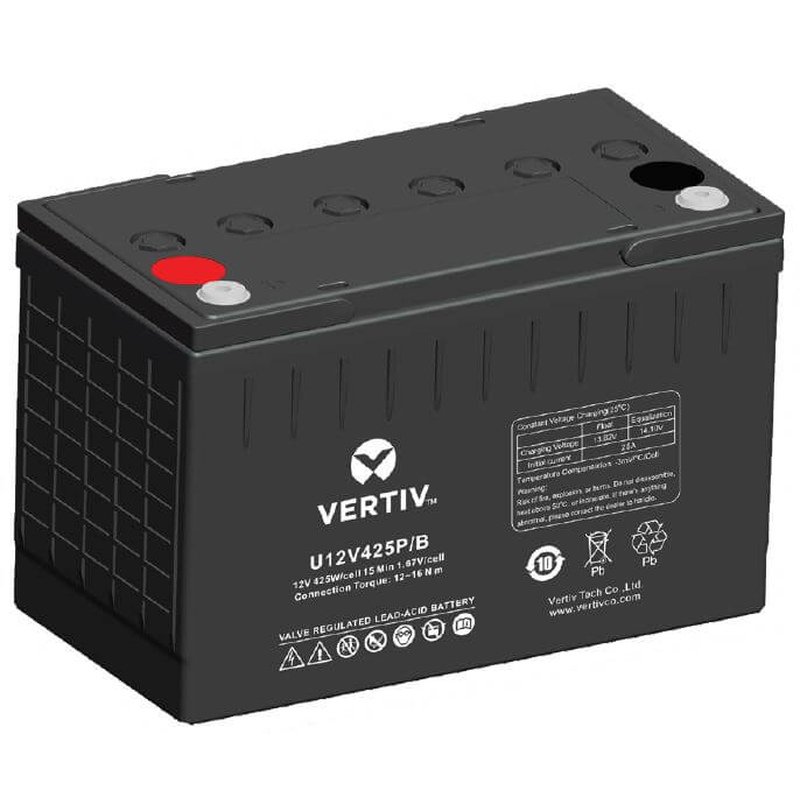

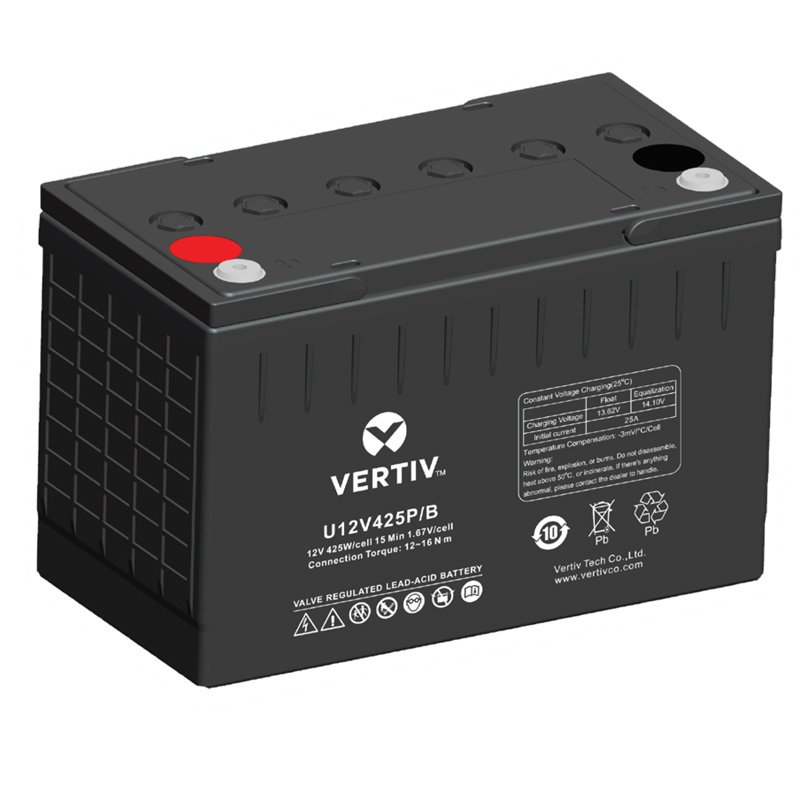

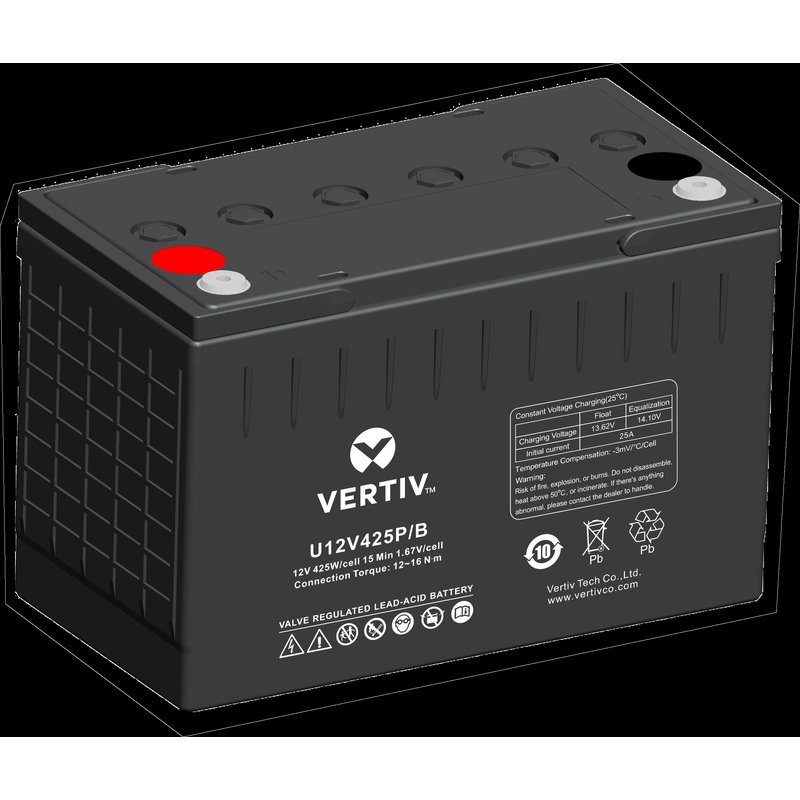

Vertiv U12V425P/B 12 V 100 Ah VRLA Battery
Vertiv U12V425P/B 12 V 100 Ah VRLA Battery is listed by Iwell for UPS battery enquiries. The published specifications include Nominal voltage: 12 V; Capacity (C10 at 25°C): 100 Ah. Match the battery voltage, capacity, terminals, dimensions and discharge conditions to the UPS battery arrangement and charging limits.
Vertiv U12V425P/B selection and documents
Match the battery voltage, capacity, terminals, dimensions and discharge conditions to the UPS battery arrangement and charging limits.
Use the specification table below and the Documents tab to review U12V425P/B. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare UPS battery products or browse Vertiv product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
| Brand | Vertiv |
|---|---|
| Model | U12V425P/B |
| Series | P |
| Nominal voltage | 12 V |
| Capacity (C10 at 25°C) | 100 Ah |
| Dimensions (L × W × H) | 330 × 173 × 216 mm |
| Weight | 30.8 kg |
| Terminal | M8 |
Models and configurations
| 15-minute constant power at 1.67 V/cell, 25°C | 425 W/cell |
|---|
Product enquiry
Contact Iwell for Vertiv U12V425P/B 12 V 100 Ah VRLA Battery. Include the required model or configuration, quantity and destination in your enquiry.
