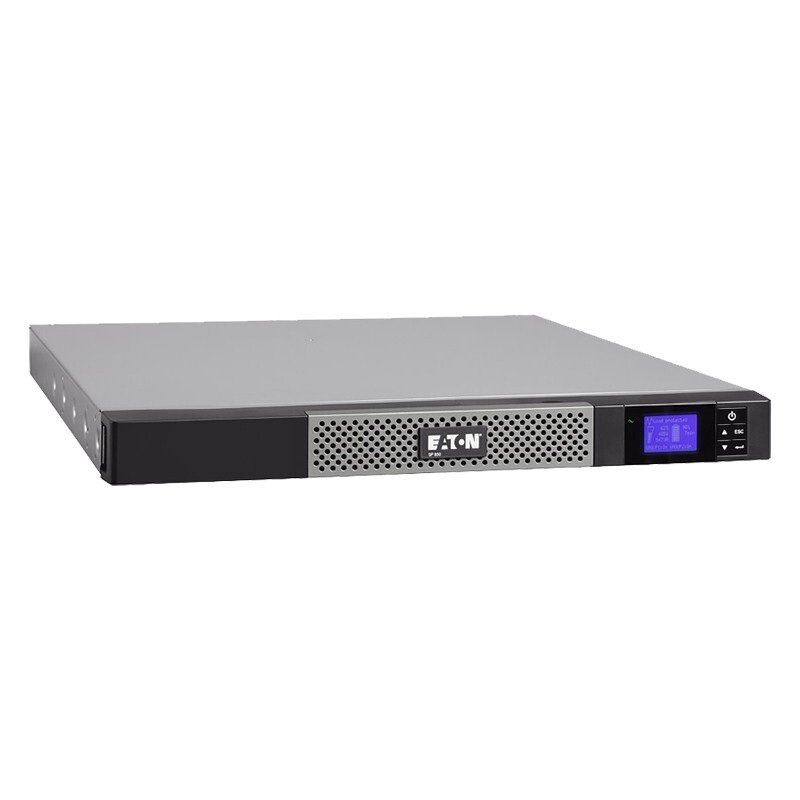

Eaton 5P650IR overview
Eaton 5P650IR Line-interactive UPS (650VA/420W) is listed by Iwell for line-interactive UPS enquiries. The published specifications include Power rating: 650 VA / 420 W; Mounting: Rack, 1U; Input connection: C14. Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Product highlights
- 650 VA / 420 W power rating for matching the UPS to your equipment load.
- Rack, 1U configuration for the available installation space.
- C14 input and (4) C13 outputs for checking connection compatibility.
Eaton 5P650IR selection and documents
Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Use the specification table below and the Documents tab to review 5P650IR. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare line-interactive UPS products or browse Eaton product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
| Power rating | 650 VA / 420 W |
|---|---|
| Topology | Line-interactive |
| Mounting | Rack, 1U |
| Input connection | C14 |

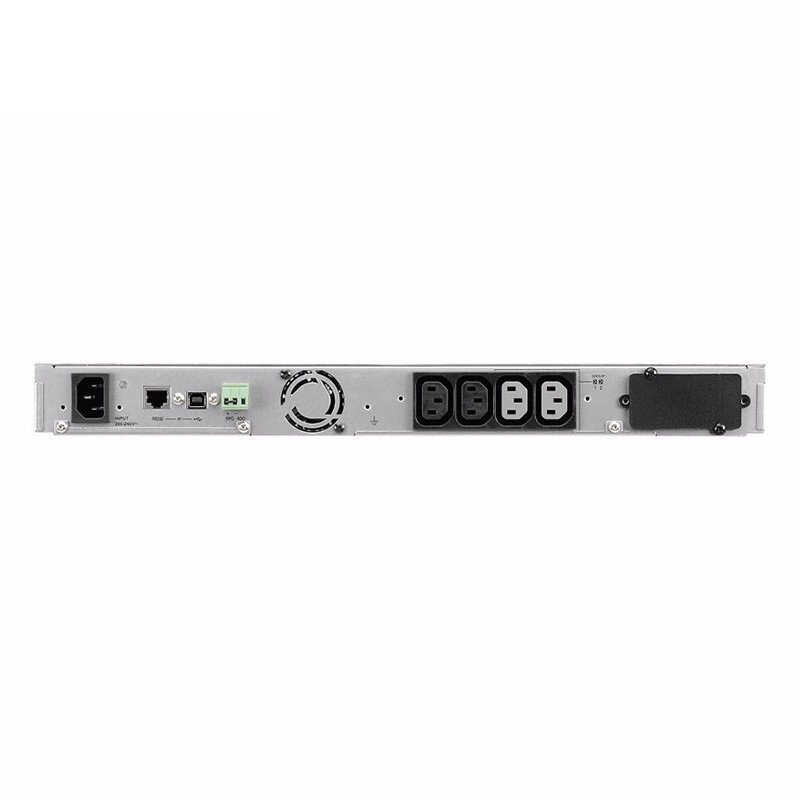

| Output connections | (4) C13 |
| Width | 438 mm |
| Height | 43.2 mm |
| Depth | 364 mm |
| Weight | 8.6 kg |
Product selection
Check the equipment load, connection types, available space and required backup time before selecting the configuration. Share your model, quantity and runtime requirements for a quotation.
