Eaton 5PX3000IRT2UG2 overview
Eaton 5PX3000IRT2UG2 Line-interactive UPS (3000VA/3000W) is listed by Iwell for line-interactive UPS enquiries. The published specifications include Power rating: 3000 VA / 3000 W; Mounting: Rack/tower, 2U; Input connection: C20. Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Product highlights
- Line-interactive operation with sine-wave output.

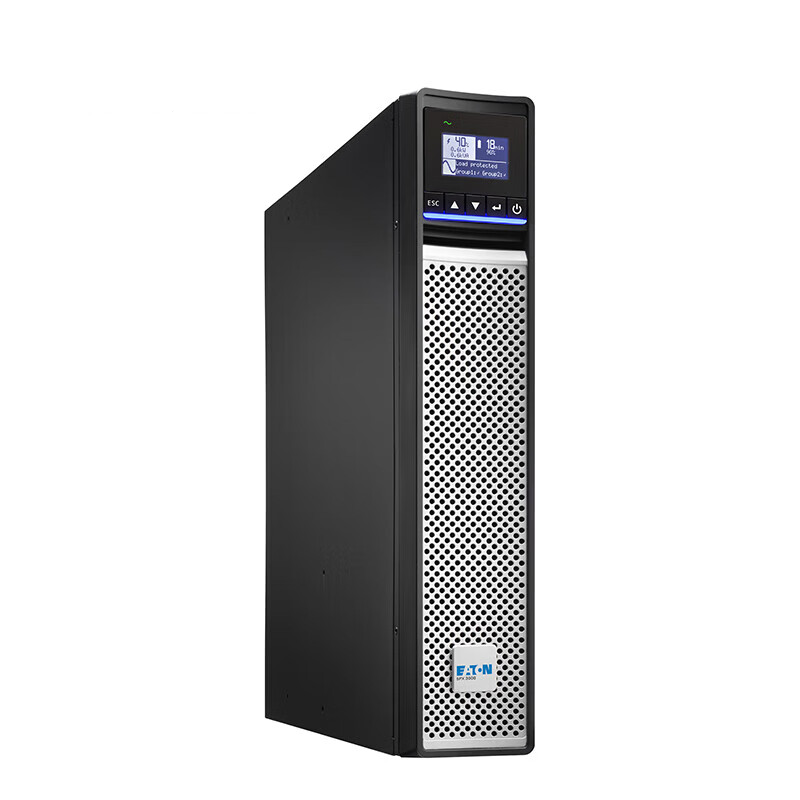

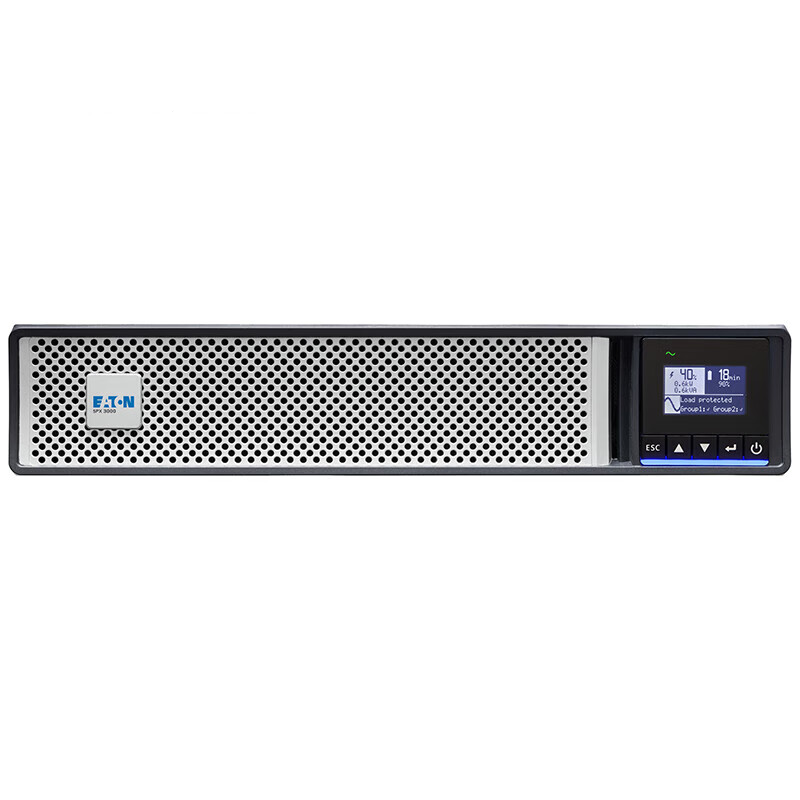

- Rack/tower design in a 2U enclosure.

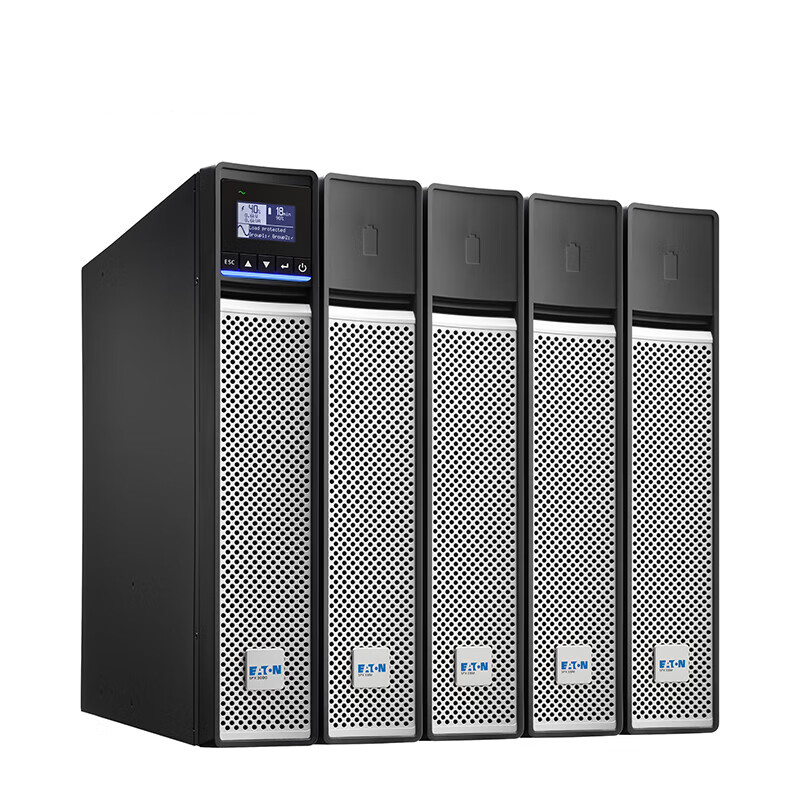

- Support for compatible external battery modules.
Eaton 5PX3000IRT2UG2 selection and documents
Compare both VA and W ratings, input/output voltage, connections and installation space. Specify the actual load and desired backup time when reviewing battery options.
Use the specification table below and the Documents tab to review 5PX3000IRT2UG2. Match the exact model or series configuration before ordering. Read the selection guidance.
Compare line-interactive UPS products or browse Eaton product families. For a quotation, provide the complete model, quantity, destination and required configuration.
Technical specifications
| Power rating | 3000 VA / 3000 W |
|---|---|
| Topology | Line-interactive |
| Mounting | Rack/tower, 2U |
| Input connection | C20 |

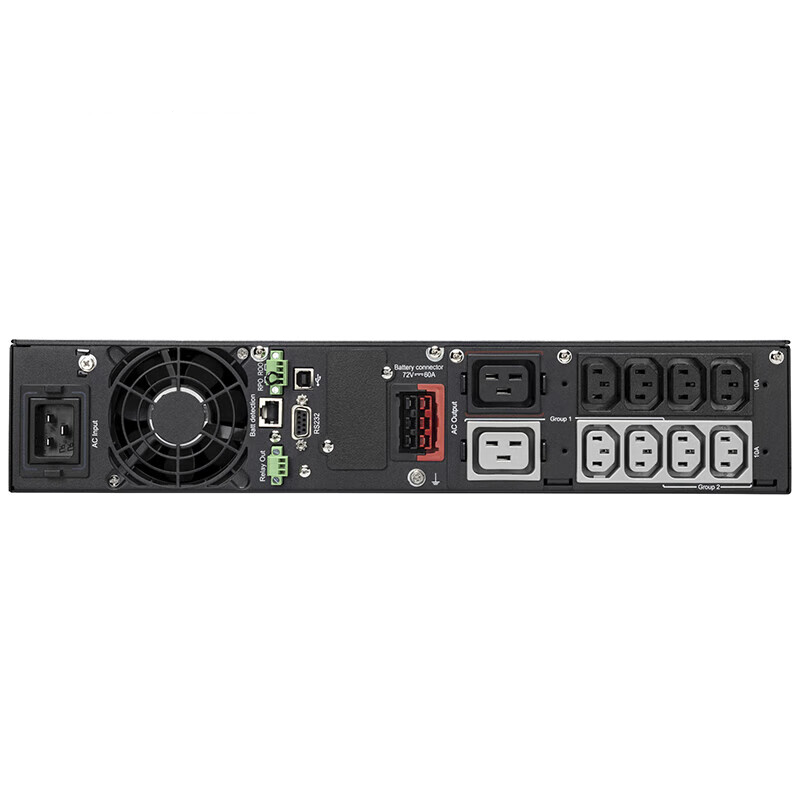

| Output connections | (8) C13, (2) C19 |
| Width | 438 mm |
| Height | 85.5 mm |
| Depth | 603 mm |
| Weight | 31.7 kg |
Product selection
Check the equipment load, connection types, available space and required backup time before selecting the configuration. Share your model, quantity and runtime requirements for a quotation.
